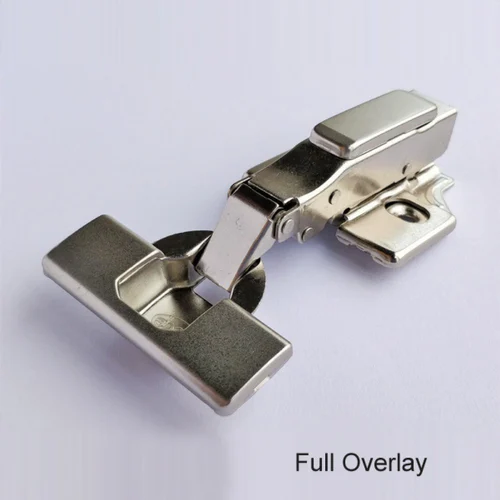

3D Slow Motion Cabinet Hinges
Rs 258 / Piece
Minimum Order Quantity: 10 Piece
| Finish Type | Nickel Plated |
| Hinge Type | Full Overlay Hinge |
| Brand | Ebco |
| Thickness | 19 mm |
| Material | Stainless Steel |
| Suitable For | Cabinet |
- DESCRIPTION
- Mounting plate has three way adjustment (3D) Unique built in damping system allows the shutter to close in slow motion without banging Available in Full overlay, Half overlay & Inset Max opening: 105º Max. Shutter size: 34" x 22" (850mm x 550mm) for 2 hinges Shutter Thickness: 16mm to 19mm Shutter cavity: Ø35mm, 12 deep, cavity 4mm from edge Finish: Nickel Plated FITTING INSTRUCTIONS Drill out the cavity in the shutter as per the dimensions in Fig. 1. Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter Mark holes in the cabinet for mounting plate as per Fig. 2 and screw on the mounting plate. Now, align the shutter with the cabinet and click-on the mounting plate. Any play or gap in cabinet can be adjusted in the bracket By loosening the bracket screws, the shutter can slide horizontally and also be pivoted for varying pressure. CAUTION For efficiency and durability To avoid damage to hinge, do not force the door to exceed 105º Do not apply paint or polish Hinges must be parallel The hinge must not be hammered
