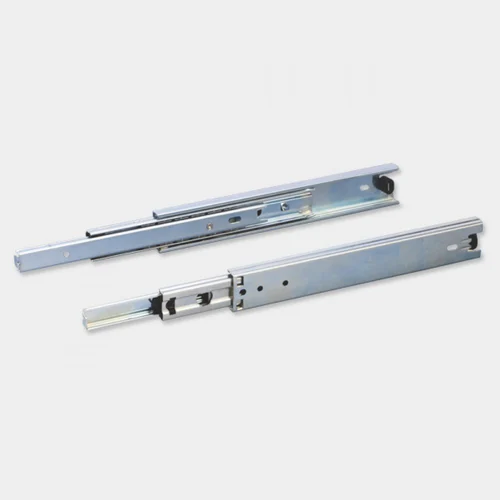

Mini Telescopic Drawer Slide
Rs 300 / Set
Minimum Order Quantity: 10 Set
| Usage/Application | Drawers/Sliding |
| Drawer Extension | Full Extension |
| Mount Type | Side Mount |
| Color | Silver |
| Material | Stainless Steel |
| Size | 8inch |
| Closing Type | Self Closing |
| Brand | Ebco |
| Set Content | 2 Piece |
- DESCRIPTION
- Precision telescopic slides.
Full extension of drawer.
Direct fitting from front.
Removable drawer with Latch.
'System 32' Installation.
Load capacity: 10 kgs.
FITTING INSTRUCTIONS
To install mini telescopic slide 12.7 to13.0mm side gap per side is required between cabinet and drawer. (Refer Fig. 1).
Depress latch and remove the inner slide. (Refer Fig. 2).
Fit outer (fixed) slide onto the inside of the cabinet, access to holes can be got through slots in intermediate slide.
Slides should be fitted parallel and screws tightened fully to avoid gaps.
Fit inner slide onto the outside of the drawer.
Now slide the drawer with inner slide engaged on to the intermediate slides on the cabinet till the latch engages automaticall
CAUTION For efficiency and durability,
Strictly maintain 12.7 to 13.0mm side gap.
Fit slides parallel and at equal heights.
Do not apply paint or polish.
Do not let saw dust enter into the slides.
