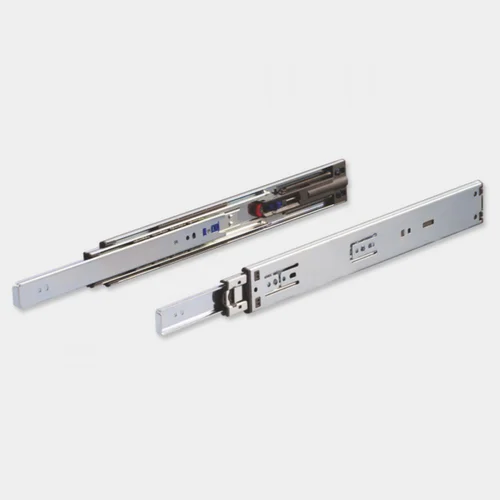

Sleek Telescopic Slide
Rs 410 / Set
Minimum Order Quantity: 10 Set
| Color | Silver |
| Material | Stainless Steel |
| Closing Type | Manual |
| Drawer Extension | Full Extension |
| Mount Type | Side Mount |
| Usage/Application | Drawers/Sliding |
| Size | 20inch |
| Brand | Ebco |
| Set Content | 2 Piece |
- DESCRIPTION
- 30 mm stroke of Soft - Closing Pull force 3.2 - 3.5 kgs Soft-closing function built in slide, easy for installation. Non-handed Disconnect Release. 35 kgs / 100 Ibs loading at 20". Electro-Zinc plated. FITTING INSTRUCTIONS To install Premium Sleek Telescopic Slide-Soft Close,13.0 to 13.8 mm side gap per side is required between cabinet and drawer (Ref Fig. 1). Fit Outer (Fixed) slide on to the inside of the cabinet, access to holes can be got through slots in Intermediate slide. Slides should be fitted parallel and screws tightened fully to avoid gaps. Fit Inner slide onto the outside of the drawer. Now slide the drawer with Inner slide fitted on to the intermediate slides on the cabinet till the latch engages. CAUTION For efficiency and durability: Strictly maintain 13.0 to 13.8mm side gap. Fit slides parallel and at equal heights. Do not apply paint or polish. Do not let saw dust enter into the slides.
