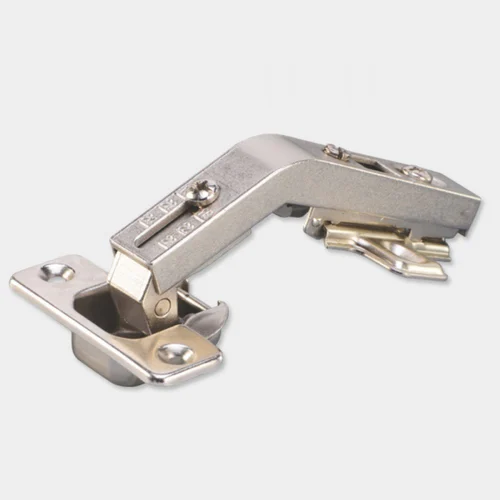

Ebco Folding Door Hinges
Rs 324 / Piece
Minimum Order Quantity: 10 Piece
| Suitable For | Door |
| Size | 6 inch |
| Hinge Type | Folding Hinge |
| Brand | Ebco |
| Material | Mild Steel |
| Thickness. | 19 mm |
- DESCRIPTION
- Special hinge for pie-cut corner cabinets with bi-fold doors. For shutter thickness variation from 16mm to 26mm. To be used in combination with 'ebco' 180° hinge. 3 dimensional adjustment with special adjustment for shutter thickness. Finish - Nickel Plated FITTING INSTRUCTIONS Drill out the cavity in the shutter as per the dimensions in Fig. 1. Use 'ebco' Drilling jig. Do not chisel. Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter. Mounting plates are fitted on folding door and fixing holes are 32 mm apart and 36 mm from the edge. (Ref. Fig 2) Adjustment for height, gap, side and depth are available. CAUTION For efficiency and durability. Do not apply paint. Hinges must be parallel. The Hinges must not be hammered
